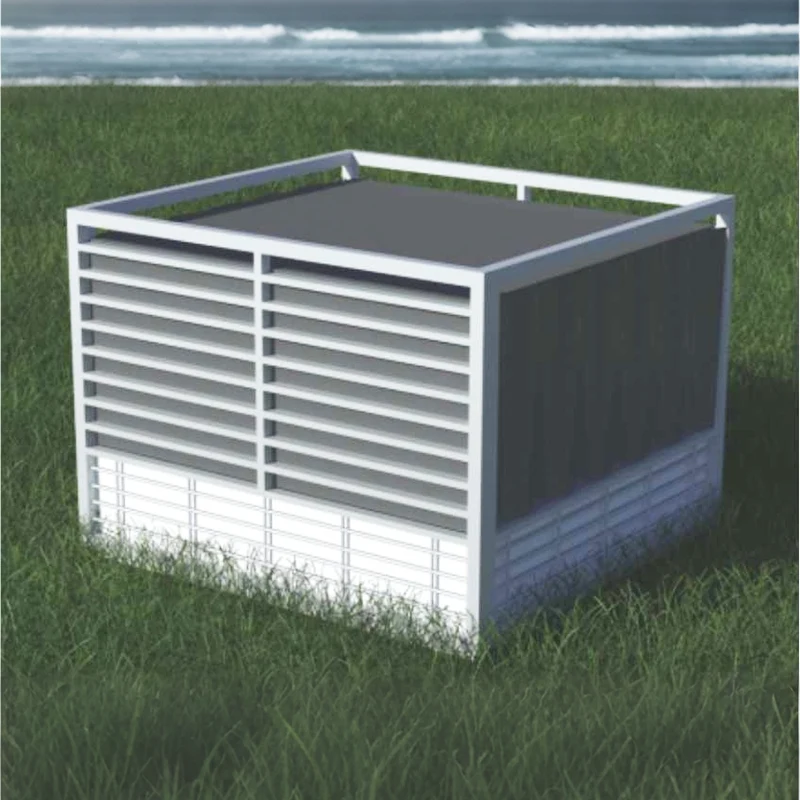

Tunnel Fresh Air Purification System

The Tunnel Fresh Air Purification System is a specialized intelligent ventilation and purification equipment designed for enclosed traffic spaces such as highways, urban underpass tunnels, and mountain tunnels. It serves as the core environmental supporting system for smart transportation.

Traditional tunnels rely solely on jet fans for air convection and natural pollutant dilution, which cannot fundamentally address vehicle exhaust and dust pollution. This leads to accumulated contaminants inside tunnels, reduced visibility, and exhaust overflow that disturbs surrounding communities. The Tunnel Fresh Air Purification System integrates mechanical fresh air replacement, high-voltage electrostatic dust removal, harmful gas filtration, and intelligent monitoring and control technologies. It actively extracts polluted air from tunnels, performs deep purification of particulates and harmful gases, and returns clean air to the tunnel or discharges it in compliance with standards. Achieving "on-site purification, circulating fresh air, and ultra-low emissions," it completely solves industry pain points of poor ventilation, severe pollution, high energy consumption, and significant disturbance in enclosed tunnels, making it standard equipment for modern green smart tunnels.

Operating Principle

The system establishes a comprehensive air duct network using axial flow fans and jet fans to collect highly polluted air from tunnels.

The air sequentially passes through:

1. Primary filtration module: Removes large dust particles and debris

2. High-voltage electrostatic precipitation module: Captures fine particulates

3. Gas adsorption and decomposition module: Treats harmful gases

It efficiently removes traffic-related pollutants including PM2.5, PM10 dust, vehicle exhaust, nitrogen oxides, carbon monoxide, and VOCs. Purified clean air is reintroduced into the tunnel to continuously replace polluted air. The system intelligently adjusts air volume and purification levels to adapt to complex conditions such as traffic flow fluctuations, day-night temperature differences, and weather changes, ensuring 24/7 compliance of tunnel traffic environment and surrounding air quality.

Core Advantages

1. Comprehensive Deep Purification for Complex Traffic Pollution

Tunnel pollutants consist of vehicle exhaust and tire dust, creating a mixed pollution of particulates and harmful gases that traditional ventilation can only dilute but not eliminate. The Tunnel Fresh Air Purification System adopts composite purification technology with high-voltage electrostatic dust removal and specialized gas filtration modules. It captures ultrafine dust as small as 0.01μm, achieving over 85% purification efficiency for PM2.5 and PM10. It also specifically adsorbs and decomposes nitrogen oxides, carbon monoxide, and exhaust odors, comprehensively improving tunnel visibility, eliminating driving vision obstruction caused by haze and smoke accumulation, significantly enhancing tunnel traffic safety, and completely addressing the incomplete purification limitation of traditional ventilation.

2. Intelligent Dynamic Regulation with Significant Energy Savings

Traditional tunnel fans operate at full capacity 24/7, resulting in extremely high energy consumption and resource waste. This system is equipped with an IoT intelligent monitoring platform with high-precision sensors that collect real-time core data 24/7, including tunnel traffic flow, visibility, harmful gas concentrations, temperature, and humidity. Based on intelligent algorithms, it dynamically adjusts fan speed, purification air volume, and operation levels. It automatically increases power for intensive purification during peak traffic hours and pollution exceedances, and enters low-power standby during low traffic periods with good air quality. Compared to traditional fixed-condition ventilation systems, it achieves over 60% comprehensive energy savings, significantly reducing long-term tunnel operation electricity costs and meeting municipal low-carbon construction requirements.

3. Consumable-Free Long-Term Operation with Extremely Low Maintenance Costs

The core purification unit uses washable metal electrostatic plates with no disposable consumables such as HEPA filters, completely avoiding the drawbacks of traditional filtration equipment including frequent filter replacement, clogging, mold growth, and secondary pollution. When plates accumulate dust and dirt, they can be reused after automatic cleaning by the equipment or manual washing and drying. Core components are recyclable for lifelong use with no consumable replacement costs. The equipment features a robust structure with wind resistance and aging resistance, adapting to the harsh conditions of high dust, high humidity, and 24/7 uninterrupted operation in tunnels. With extremely low failure rates requiring only quarterly routine maintenance, it significantly reduces labor and material operation expenses for municipal tunnels.

4. On-Site Purification with Ultra-Low Emissions to Eliminate Exhaust Disturbance

Traditional tunnel ventilation directly discharges high-concentration exhaust and dust to areas around tunnel entrances and exits, easily causing turbid air, pungent odors, and long-term pollution of surrounding residential areas and municipal roads, leading to resident complaints. The Tunnel Fresh Air Purification System adopts an "internal circulation purification + compliant discharge" mode, where tunnel polluted air is purified before discharge. The pollutant content in discharged air is greatly reduced, fully complying with municipal environmental protection standards. It fundamentally solves problems of tunnel exhaust overflow, dust disturbance, and surrounding air pollution, creating green and environmentally friendly tunnels suitable for construction in urban core areas.

5. Exceptional Adaptability with Flexible Construction and Retrofit

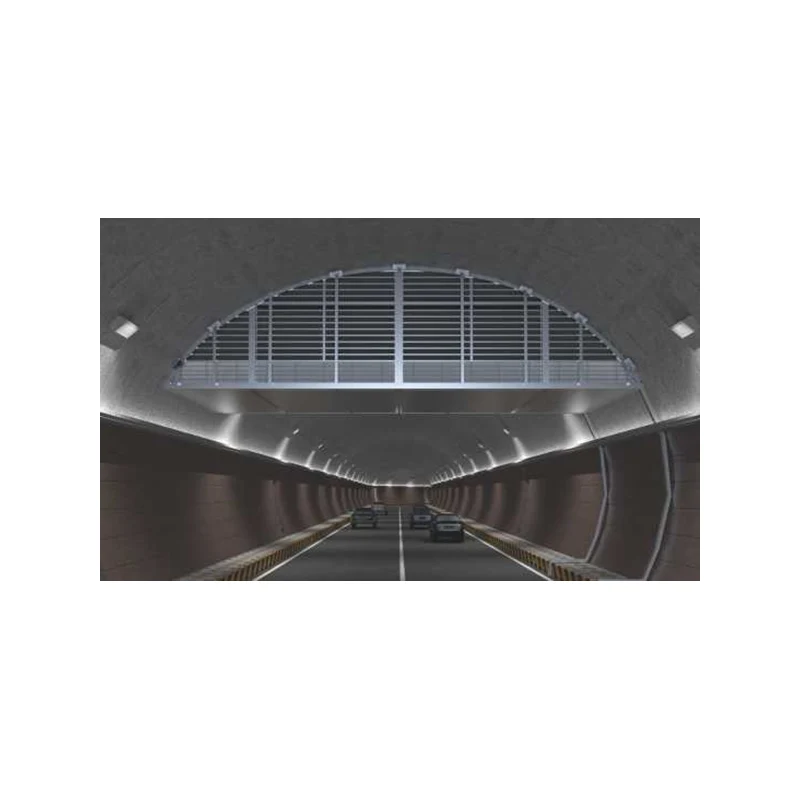

The system supports multiple installation methods including shaft-embedded, tunnel ceiling-mounted, and machine room centralized types, requiring no major modifications to the tunnel main structure. It is compatible with both new tunnel projects and retrofitting of existing old tunnels. Equipment matrices can be flexibly configured based on tunnel length, traffic volume, and cross-sectional area. With high-airflow single units and multi-unit linkage for full coverage, it achieves comprehensive dead-angle-free fresh air replacement and purification for both short urban underpass tunnels and long mountain highway tunnels, offering excellent compatibility and adaptability.6. Enhanced Traffic Environment and Improved Driving SafetyAs enclosed or semi-enclosed traffic spaces, tunnels are prone to smoke and exhaust accumulation that reduces visibility and causes chest discomfort for drivers and passengers, easily leading to traffic accidents. The system continuously circulates and purifies air, maintaining fresh tunnel air and stable excellent visibility, eliminating driving vision blind spots, significantly reducing the incidence of rear-end collisions and other accidents, while improving driving comfort and ensuring safe, efficient, and regular tunnel operation.

Engineering Case Studies

Case 1: Beijing Guangqu Road Yuntong Tunnel - Ultra-Low Emission Retrofit in Urban Core Area

Beijing Guangqu Road Yuntong Tunnel is an urban core arterial underpass with heavy and dense traffic. Under traditional ventilation mode, severe exhaust accumulation at tunnel entrances and exits, low visibility, and prominent exhaust overflow disturbance created significant environmental pressure. The project adopted a standardized Tunnel Fresh Air Purification System with triple purification structure: primary filtration, electrostatic precipitation, and nitrogen dioxide gas filtration, paired with high-power axial flow fans. Each set of equipment has a maximum purification air volume of 180 cubic meters per second. The system is equipped with a timed intelligent operation mechanism focusing on morning and evening peak hours and midday dense traffic periods, providing 24/7 dynamic tunnel air purification.

After implementation, PM2.5 and suspended dust inside the tunnel were significantly reduced, visibility was greatly improved, and driving vision became clear. Testing showed over 85% reduction in tunnel exhaust air pollutants, achieving fully compliant discharge. It completely solved problems of exhaust odor, air pollution, and surrounding resident complaints at tunnel entrances and exits. The intelligent start-stop and on-demand operation mode delivered outstanding energy savings compared to the original fan system, with convenient operation and maintenance, becoming a benchmark case for green purification transformation of Beijing urban tunnels.

Case 2: Hong Kong Central Kowloon Route Tunnel - Ultra-High Airflow Comprehensive Purification Project

Hong Kong Central Kowloon Tunnel is a large urban arterial tunnel with extremely high traffic load and strict requirements for air purification capacity, stability, and environmental standards. The project deployed 9 sets of large-scale Tunnel Fresh Air Purification Systems integrating four core technologies: high-efficiency electrostatic filtration, harmful gas removal, automatic cleaning, and intelligent monitoring. The total system processing air volume reaches 8.1 million cubic meters per hour, enabling high-frequency comprehensive circulation purification of tunnel air.

The equipment relies on an intelligent monitoring system to link real-time traffic flow data with air quality data, dynamically adjusting operating power to eliminate ineffective energy consumption. The high-voltage electrostatic module efficiently captures ultrafine dust and exhaust particles, while the dedicated adsorption module decomposes harmful gases. Combined with automatic cleaning function, it ensures long-term stable operation without performance degradation. After project completion, it completely transformed the traditional passive dilution ventilation mode of tunnels, achieving active purification and on-site compliance. Tunnel internal air quality remains consistently excellent, and surrounding area air pollution problems are completely resolved, making it a global benchmark project for ultra-large-scale tunnel fresh air purification.

Case 3: Nanjing Caochangmen Tunnel - 5G Smart Green Tunnel Demonstration Project

As a key urban demonstration tunnel focusing on intelligent and green operation, Nanjing Caochangmen Tunnel addressed pain points of enclosed pollution accumulation and high energy consumption by deploying matrix-type tunnel fresh air purification equipment in batches. The system features an innovative carbon nanotube high-voltage electric field purification module combined with 5G IoT intelligent control technology, accurately filtering various traffic pollutants including PM2.5, PM10, nitrogen oxides, and VOCs, with stable comprehensive purification efficiency over 80%.

The equipment has intelligent adaptive operation capability, automatically starting/stopping and adjusting levels based on tunnel humidity and pollutant concentration. It automatically shuts down for energy saving in low-pollution, high-humidity environments, significantly reducing ineffective energy consumption. After transformation, there is no exhaust odor or smoke accumulation in the tunnel, and visibility remains optimal at all times, with a significant decrease in traffic accident rates. Additionally, the equipment requires no frequent maintenance, only regular simple maintenance for long-term operation. It was successfully selected as one of Jiangsu Province's Top Ten Green Transportation Innovation Cases, providing a mature model for urban smart tunnel transformation.

Case 4: Beijing East Sixth Ring Road Tunnel - Ventilation and Purification Upgrade for Aging Tunnel

Beijing East Sixth Ring Road Tunnel is a key urban traffic tunnel that has been in service for a long time. The original traditional ventilation equipment only achieved air convection without purifying exhaust and dust, leading to long-term problems of turbid internal air, severe dust accumulation, and excessive discharge pollution. This upgrade comprehensively installed the Tunnel Fresh Air Purification System using shaft-embedded installation with three-layer purification system: primary filtration, electrostatic deep dust removal, and gas filtration.

After upgrade, the system stably filters over 80% of particulates and harmful pollutants such as nitrogen oxides. Tunnel fresh air circulation efficiency was greatly improved, completely solving problems of insufficient air volume, lack of purification, and high energy consumption in the original ventilation system. The equipment operates stably with low noise, adapting to 24/7 tunnel traffic conditions. It not only optimized the internal traffic environment and improved driving safety but also thoroughly improved air quality around tunnel entrances and exits, achieving remarkable renewal effects for the aging tunnel with both practicality and environmental protection.

Conclusion

The Tunnel Fresh Air Purification System breaks through the inherent drawbacks of traditional tunnel ventilation: "only ventilation without purification, high energy consumption, and high pollution." With its six core advantages of composite deep purification, intelligent energy-saving regulation, zero-consumable low maintenance, ultra-low environmental emissions, wide scenario adaptability, and enhanced traffic safety, it has become the core supporting equipment for intelligent and green transformation of modern tunnels.

Multiple key domestic tunnel engineering cases fully verify that this system effectively solves core pain points including tunnel exhaust accumulation, dust pollution, insufficient visibility, exhaust disturbance, and excessive energy consumption. It not only ensures safe and efficient tunnel traffic and improves driving experience but also meets municipal environmental protection and low-carbon energy conservation requirements. Adaptable to all scenarios of new tunnel construction and aging tunnel upgrading, it is currently the optimal solution for air treatment in traffic tunnels with extremely high engineering application value and popularization prospects.
