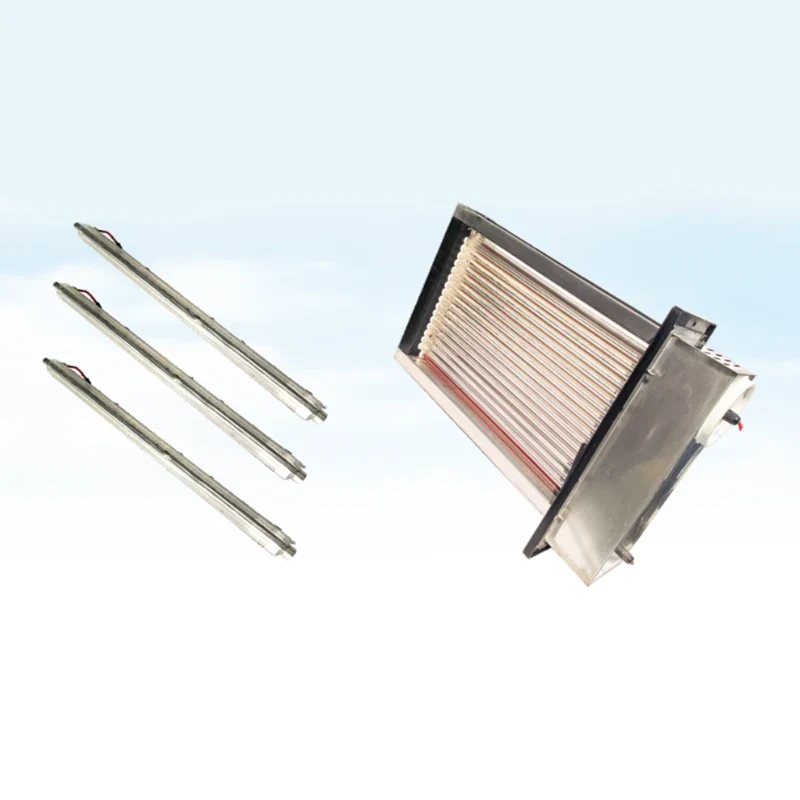

Plasma Deodorization Module

In industrial production, municipal sanitation, sewage treatment, waste disposal and other fields, the emission of industrial waste gas and odorous gases has become an increasingly prominent environmental and compliance issue. Pollutants including volatile organic compounds (VOCs), hydrogen sulfide, ammonia and malodorous gases not only damage the surrounding atmospheric environment, but also cause serious harm to human respiratory and nervous systems, and even restrict enterprises' compliant production. VOCs treatment and odor control have become a core part of global and China's environmental governance.

Our Plasma Deodorizer is a high-efficiency, energy-saving and eco-friendly waste gas treatment equipment. Relying on its unique low-temperature plasma reaction technology, it achieves high-efficiency purification of various odorous and harmful waste gases, helps enterprises realize standard discharge, complies with the energy saving & environmental protection development concept, and is widely used in various odor control scenarios, becoming one of the mainstream equipment in the current waste gas deodorization field.

Industry Odor Treatment Pain Points & Compliance Requirements

Odor and waste gas treatment faces multiple pain points in various industries, and traditional technologies have obvious limitations:

· Adsorption and absorption methods require frequent replacement of adsorbents and absorbents, resulting in high operating costs, solid/liquid waste secondary pollution, and reduced purification efficiency after adsorption saturation;

· High-temperature incineration equipment has huge energy consumption, high investment cost, and potential fire and explosion risks when treating flammable and explosive waste gases;

· Chemical washing methods require continuous addition of chemical agents, with high operating costs and secondary pollution risks.

In China, mandatory standards including GB 14554-93 Emission Standard for Odor Pollutants and GB 16297-1996 Integrated Emission Standard of Air Pollutants set strict limits on the emission concentration of malodorous gases, VOCs and related pollutants. Non-compliant emission will bring huge legal and operational risks to enterprises and municipal facilities, creating an urgent demand for a stable, efficient, low-cost and eco-friendly odor treatment solution.

Core Working Principle

The Plasma Deodorization Module (full name: Low-Temperature Plasma Deodorization and Purification Equipment) adopts advanced low-temperature plasma technology as its core working principle.

Through high-voltage discharge, the equipment generates a large number of high-energy electrons, ions, free radicals and other active particles. These active particles undergo a series of complex physical and chemical reactions with odor molecules and harmful pollutants in the waste gas, cracking and oxidizing pollutant molecules, and finally converting them into harmless carbon dioxide, water and other inorganic compounds, thus achieving the dual goals of deodorization and purification.

Compared with traditional deodorization equipment, the Plasma Deodorizer requires no high-temperature heating and no chemical agents added. The whole treatment process relies on physical and chemical reactions, avoiding secondary pollution. Meanwhile, it has the advantages of high purification efficiency, wide application range and low operating cost, perfectly adapting to the treatment needs of waste gas with different concentrations and components.

Core Structure & Synergistic Functional Units

The Plasma Deodorization Module consists of five core synergistic units, ensuring stable and efficient long-term operation:

Pretreatment System

The pretreatment system is the foundation for stable operation of the whole equipment. It is mainly used to remove particulate matter, oil mist, moisture and other impurities in the waste gas, preventing impurities from entering the plasma reaction chamber and causing electrode blockage, corrosion or reduced purification effect. It is usually equipped with high-efficiency filters and demisters to achieve efficient interception and filtration of impurities.

Plasma Reaction Chamber

The plasma reaction chamber is the core working area of the equipment. It is equipped with high-voltage electrodes and grounding electrodes inside. Through the high-voltage electricity provided by the power supply system, a low-temperature plasma field is formed between the electrodes. When the waste gas passes through the reaction chamber, it fully contacts with the active particles in the plasma field, completing the cracking and oxidation of pollutants.

High-Frequency High-Voltage Power Supply System

The power supply system adopts a high-frequency high-voltage power supply, which has the characteristics of strong stability, low energy consumption and long service life. It can automatically adjust the output power according to the waste gas concentration, ensuring the purification effect while reducing energy consumption. It is equipped with multiple protection mechanisms such as overload protection, short circuit protection and over-temperature protection.

Intelligent Control System

The control system adopts an intelligent design, which can real-time monitor the operating parameters of the equipment, realize automatic start and stop, fault alarm, parameter adjustment and other functions. It is easy to operate, does not require 24-hour on-site supervision by special personnel, and greatly saves labor costs.

Exhaust System

The exhaust system is responsible for discharging the purified clean gas that meets the emission standards, with a reasonable design to ensure stable air flow and no back pressure, supporting the continuous and stable operation of the whole treatment system.

Core Advantages

Ultra-High Purification Efficiency & Stable Compliance

High-efficiency purification is the core advantage of the Plasma Deodorizer, with purification efficiency far exceeding traditional deodorization equipment.

· It can efficiently treat various odorous and harmful waste gases, including VOCs, hydrogen sulfide, ammonia, methyl mercaptan, benzene series, ketones, esters, etc.;

· For low-concentration and high-air-volume waste gas, the purification efficiency can reach more than 95%, which can quickly remove odors and ensure that the waste gas emission meets national and local environmental protection emission standards;

· Unlike traditional adsorption technology, it will not have the problem of adsorption saturation and purification efficiency decline, and the purification effect is more stable, especially suitable for long-term continuous operation scenarios.

Excellent Energy Saving & Environmental Protection Performance

Energy saving & environmental protection is another prominent advantage of the Plasma Deodorizer, which fully meets the requirements of current green development and the "dual carbon" goal.

· It adopts low-temperature plasma technology, no high-temperature heating is required, and the energy consumption during operation is extremely low. Compared with traditional high-temperature exhaust incineration deodorization equipment, the energy consumption can be reduced by more than 60%, greatly reducing the power consumption and operating costs of enterprises;

· No chemical agents are added during operation, no secondary pollution is generated, and no waste water, waste residue and other pollutants are produced, realizing harmless treatment of pollutants;

· The core components have a service life of 5-8 years, with extremely low maintenance costs, further improving the energy-saving and economic benefits of the equipment.

Wide Application Range & Strong Adaptability

The Plasma Deodorizer can adapt to the waste gas deodorization needs of multiple industries and various scenarios, and can achieve good purification effect in both industrial waste gas treatment and municipal odor control. It can adapt to waste gas with different air volumes and concentrations, no need for complex equipment transformation according to waste gas parameters, with extremely high flexibility.

Compact Structure & Convenient Installation

Compared with traditional waste gas treatment equipment, the Plasma Deodorizer has a compact structure and small volume, does not occupy a lot of site space. It can adopt wall-mounted, vertical, horizontal and other installation methods according to the actual site conditions, flexibly adapting to different installation scenarios, especially suitable for enterprises and municipal facilities with narrow sites. The installation process is simple, no complex civil engineering is required, the installation cycle is short, and the installation and commissioning can be completed in 1-3 days, and it can be put into use quickly.

Stable Operation & High Safety

The equipment adopts high-quality core components, the electrodes are made of corrosion-resistant and high-temperature resistant special materials, which can adapt to harsh waste gas environments and avoid electrode corrosion and damage. The power supply system is equipped with multiple protection mechanisms to effectively prevent equipment failures and ensure stable operation.

· The noise during operation is controlled below 60 decibels, which will not cause noise pollution to the surrounding environment and staff;

· No open flame is generated during operation, avoiding potential safety hazards such as fire and explosion, especially suitable for treating flammable and explosive waste gas, with much higher safety than traditional high-temperature incineration equipment.

Low Investment Cost & Easy Operation & Maintenance

Compared with high-end waste gas treatment equipment such as Regenerative Thermal Oxidizer (RTO), the Plasma Deodorizer has lower investment cost, which is suitable for the environmental governance needs of small and medium-sized enterprises and municipal facilities. In terms of operation and maintenance, the equipment does not need frequent replacement of consumables, only needs to regularly clean and replace the filter of the pretreatment system, and simply clean and maintain the electrodes. The annual maintenance cost is less than 5% of the equipment investment cost, which greatly reduces the environmental operation and maintenance pressure of enterprises.

Wide Application Scenarios

Our Plasma Deodorizer is widely used in the following industries and scenarios:

· Industrial Field: Chemical, pharmaceutical, coating, printing, rubber, plastic, food processing and other industries, to treat VOCs and odorous gases generated in the production process;

· Municipal Sanitation Field: Waste transfer stations, sewage treatment plants, landfills, public toilets and other places, to remove malodorous gases;

· Medical Field: Odor control in hospital sewage treatment and medical waste storage rooms, to ensure a clean medical environment;

· Breeding Field: Treatment of odors such as ammonia and hydrogen sulfide generated in farms, to improve the breeding environment and reduce the impact on surrounding residents.

Real-World Application Cases

The advantages of the Plasma Deodorizer have been fully verified in practical application scenarios:

· A chemical enterprise generated a large amount of waste gas containing VOCs and odors during production. After adopting our Plasma Deodorizer, the waste gas purification efficiency reached more than 97%, all indicators met the environmental protection emission standards, and the equipment operation energy consumption was only 30% of the traditional equipment, saving a lot of power costs for the enterprise every year;

· A waste transfer station adopted our Plasma Deodorizer, which completely solved the malodor problem caused by garbage fermentation, the number of complaints from surrounding residents dropped significantly, and the environmental quality was significantly improved;

· A sewage treatment plant installed our Plasma Deodorizer, which effectively removed odors such as ammonia and hydrogen sulfide generated by the aeration tank, improved the working environment of staff, and achieved standard discharge of waste gas.
