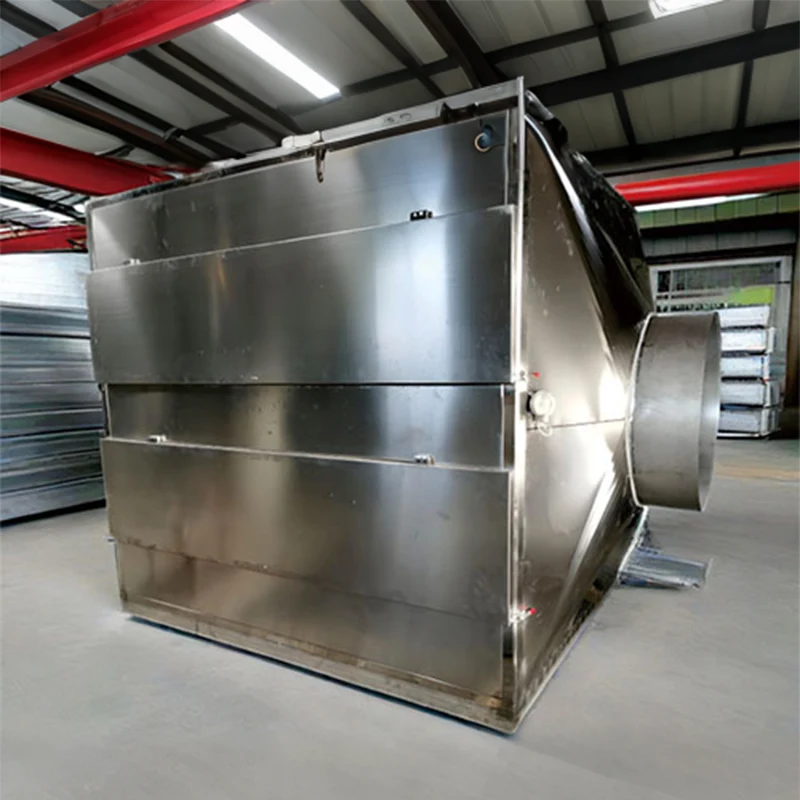

Activated Carbon Box Equipment

The activated carbon unit is a modular adsorption and purification device designed specifically for ventilation, exhaust gas treatment, and air purification systems. Typically installed in series within supply, return, or exhaust air ducts, it serves as a core component for dry exhaust gas purification and odor control. Leveraging the exceptional microporous adsorption properties of activated carbon, the unit captures and retains volatile organic compounds (VOCs), odor molecules, and harmful gases through physical adsorption, effectively addressing the limitations of dust removal and sterilization equipment in handling gaseous pollutants.

As a standardized in-duct purification module, the activated carbon unit integrates seamlessly with duct-based purification sections, fresh air systems, exhaust treatment systems, tunnel ventilation systems, and industrial exhaust systems. This integration creates a comprehensive purification chain that combines dust removal, sterilization, deodorization, and exhaust gas treatment. Widely used in fields such as commercial odor control, industrial exhaust treatment, municipal ventilation, and underground space or tunnel engineering, the unit is an essential component for improving air quality and ensuring compliance with emission standards.

Operating Principle

Featuring a standard modular duct-compatible structure, Activated Carbon Box Equipment can be directly connected to existing ventilation systems without modifying fans or main pipeline layouts. The interior is layered with high-quality honeycomb or granular activated carbon, paired with a flow distribution and equalization structure that ensures uniform airflow through the adsorption bed, maximizing contact between gas molecules and carbon material.

As air passes through the unit:

1. Solid particulates are intercepted by a pre-filter

2. VOCs, harmful gases, and odor molecules are strongly adsorbed and locked within the activated carbon's microporous structure

3. Clean, odor-free, and compliant air is discharged

This process achieves both odor elimination and waste gas purification in a single pass.

Core Advantages

1. Targeted Gaseous Pollutant Treatment with Precise Odor Elimination

Traditional dust removal and electrostatic purification equipment only address particulate matter, leaving gaseous pollutants and odors untreated. Activated carbon boxes specialize in gas adsorption and odor eradication. With their extensive microporous structure and enormous surface area, they efficiently adsorb formaldehyde, benzene, toluene, xylene, and total VOCs (TVOCs). They also effectively eliminate cooking fumes, mold odors, exhaust fumes, chemical odors, and putrid smells—perfectly complementing ventilation purification systems to achieve comprehensive solid and gaseous pollutant control.

2. Modular Duct Compatibility for Flexible Installation and Retrofit

Designed to match standard industrial duct dimensions, these compact units can be easily installed in series in fresh air ducts, return air ducts, exhaust ducts, central air conditioning systems, and tunnel ventilation pipelines. They are equally suitable for new construction projects and retrofitting existing ventilation systems, requiring no major pipeline modifications, dedicated equipment rooms, or valuable indoor space. They can operate independently or be combined with electrostatic precipitation sections, UV sterilization sections, and pre-filtration sections to form multi-stage purification systems, adapting to standardized engineering construction requirements.

3. Low Air Resistance with Minimal Impact on System Performance

The internal scientific airflow guidance structure and uniformly arranged carbon beds result in significantly lower air resistance compared to thick composite filter devices. They do not cause airflow attenuation, insufficient static pressure, or weak air supply issues. When integrated into systems, they add virtually no load to existing fans, maintaining the original ventilation efficiency without requiring additional booster equipment. This makes them ideal for 24-hour continuous ventilation and high-airflow exchange applications, offering excellent energy efficiency and adaptability.

4. Robust, Safe Dry Purification with No Secondary Pollution

Activated Carbon Box Equipment utilize dry physical adsorption purification, requiring no water, chemicals, or chemical reactions. They produce no wastewater or waste liquids, generating no secondary pollutants—making them truly green environmental protection equipment. The housing is constructed from thickened metal for corrosion resistance, rust prevention, and excellent sealing. Internally, flame-retardant activated carbon materials provide superior fire safety. With no duct leakage or gas backflow issues, they are suitable for long-term operation in complex industrial, municipal, and underground space conditions.

5. Simple Maintenance and Controllable Operating Costs

The pull-out carbon bed design enables easy access for maintenance, allowing quick activated carbon replacement without specialized tools. When adsorption capacity is exhausted, only the carbon material needs replacement—the box itself can be reused indefinitely. Compared to complex waste gas treatment technologies such as spray towers and catalytic combustion, activated carbon boxes have a simple structure, extremely low failure rates, and minimal daily maintenance requirements, significantly reducing long-term labor and equipment costs for engineering projects.

6. Multi-Stage Combination Capability for Complete Purification Systems

Activated carbon boxes perfectly complement high-voltage electrostatic precipitation sections, UV sterilization sections, and pre-filtration sections to form comprehensive multi-stage purification systems. Front-end modules handle dust removal and sterilization, while the rear-end activated carbon box addresses odor and VOC removal. This division of labor and layered purification completely solves the functional limitations of single-purpose equipment, enabling ventilation systems to achieve full-dimensional purification from particulates and bacteria to odors and waste gases, comprehensively improving air quality and emission standards.

Primary Application Scenarios

1. Commercial Central Air Conditioning Ventilation Systems

Widely used in large public buildings including office buildings, shopping malls, hotels, exhibition halls, and stadiums for odor purification in central air conditioning supply and return ducts. They effectively eliminate stuffy odors from crowded spaces, as well as mold and damp odors accumulated in ductwork over time, maintaining consistently fresh indoor air and enhancing comfort in public and working environments.

2. Underground Space Ventilation Purification Projects

Suitable for enclosed, humid underground spaces such as parking garages, pedestrian tunnels, civil air defense works, and underground shopping malls. They specifically target exhaust fumes, mold odors, and stale air, adsorbing trace harmful gases and solving the persistent problems of strong odors, turbid air, and poor ventilation quality in underground environments.

3. Tunnel Traffic Ventilation Purification Systems

Can be connected in series to fresh air and exhaust ducts in urban underpass tunnels and highway tunnels as a post-treatment module for tunnel purification systems. They specifically adsorb harmful gases and odor molecules from vehicle exhaust, helping reduce pollutant concentrations in discharged air and addressing exhaust odor nuisance at tunnel entrances and exits, supporting green and intelligent tunnel environmental compliance retrofits.

4. Industrial Workshop Waste Gas and Odor Control

Applicable to workshops generating VOCs and odorous waste gases, including painting workshops, packaging facilities, chemical plants, printing facilities, and light manufacturing operations. They effectively adsorb benzene, aldehydes, volatile organic compounds, and pungent odors produced during production, improving workshop air quality and ensuring factory exhaust meets environmental emission standards for compliance acceptance.

5. Healthcare, Educational and Residential Fresh Air Systems

Used in fresh air duct purification for hospitals, schools, and residential buildings. They adsorb residual formaldehyde and TVOCs from decoration, filter odors and pollutants brought in by outdoor fresh air, and continuously purify indoor air quality. This creates odor-free, clean, and healthy living, teaching, and medical environments, adapting to scenarios with high air quality requirements.

Conclusion

The Activated Carbon Adsorption Box is an indispensable gaseous purification module in ventilation purification and industrial waste gas treatment systems, specifically addressing the odor, VOC, and harmful gas pollution problems that dust removal and sterilization equipment cannot solve. With its core advantages of duct modular compatibility, low air resistance, dry green purification, simple maintenance, and strong combinability, it flexibly adapts to various new and retrofit ventilation projects.

Whether for commercial space odor improvement, underground space air optimization, tunnel exhaust treatment, or industrial waste gas compliance, activated carbon boxes deliver precise purification and complete the air purification system. They remain one of the most practical and widely implemented core supporting devices in ventilation purification and waste gas treatment engineering.
