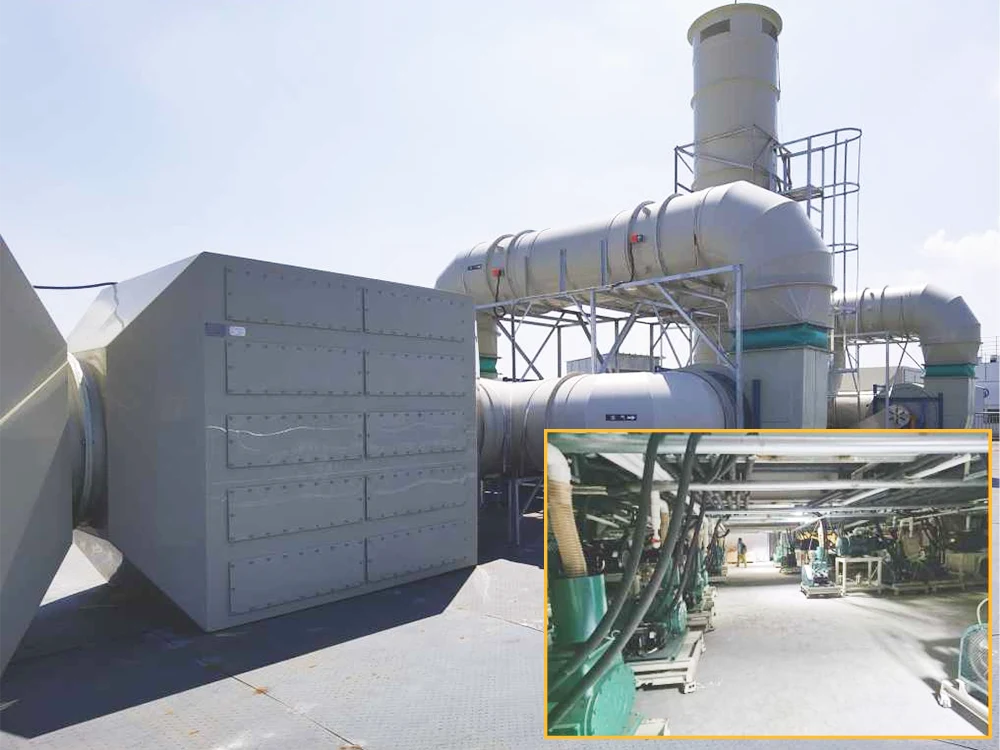

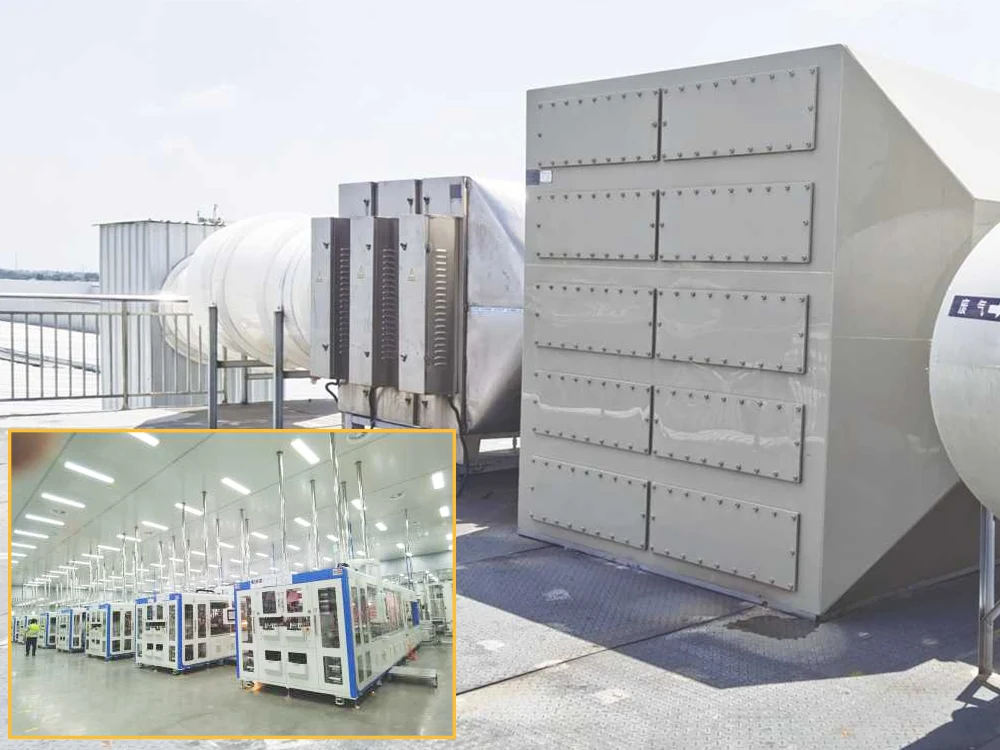

Photovoltaic Organic Waste Gas Treatment Equipment

Functions & Advantages Description

The Photovoltaic Organic Waste Gas Treatment Equipment is a professional environmental protection system exclusively developed for the photovoltaic (PV) industry. Its core function is to achieve efficient collection, purification and treatment of organic waste gas generated during the full PV manufacturing process. With core processes including catalytic combustion and activated carbon adsorption, it ensures treated organic waste gas fully meets emission standards, thoroughly solves air pollution risks in PV production, and provides a solid guarantee for green, compliant and low-carbon operation of PV enterprises.

Targeted Pain Points

PV production covers multiple core links, each generating organic waste gas with varying concentrations and components, which forms the core challenge of PV waste gas governance.

Silicon material processing: A small amount of organic solvent waste gas volatilizes during pickling and purification, with low concentration but continuous emission. Without timely collection and treatment, it is prone to accumulate in the workshop and cause environmental hazards.

Silicon wafer cutting & grinding: Cutting fluid volatilization produces organic waste gas mixed with dust. The mixed emission not only increases purification difficulty, but also may affect the precision of PV products.

Solar cell manufacturing: High-concentration organic waste gas (mainly Non-Methane Total Hydrocarbons (NMHC) and Volatile Organic Compounds (VOCs)) is generated during coating and vacuum film-forming processes. This type of waste gas features strong volatility and fast diffusion; direct emission will pollute the atmosphere, and long-term exposure will endanger the health of on-site operators.

PV module encapsulation: A large amount of high-viscosity organic waste gas is released during glue pouring and lamination. It easily adheres to equipment surfaces and products, reducing production efficiency and causing secondary pollution.

Efficient collection and scientific treatment of organic waste gas has become a core prerequisite for PV enterprises to achieve compliant production.

Full-Closed Loop Governance System & Core Technical Advantages

The core advantage of the Photovoltaic Organic Waste Gas Treatment Equipment lies in its full-process closed-loop governance of organic waste gas. From waste gas collection to final standard-compliant emission, each link is scientifically designed to accurately match the needs of each PV production stage.

Efficient Leakage-Free Waste Gas Collection System

The collection link adopts a fully enclosed negative pressure design, equipped with dedicated gas collection hoods and closed conveying pipelines. Targeting the emission characteristics of different production links, gas collection devices are rationally arranged in key areas such as silicon wafer cutting workshops, solar cell coating workshops and module encapsulation workshops, to ensure zero leakage and zero escape of organic waste gas, and achieve full-coverage, high-efficiency collection.

Pre-Treatment for Stable Long-Term Operation

Collected organic waste gas first enters the pre-treatment unit, where dust, oil mist and other impurities are removed. This avoids impurities affecting the subsequent purification effect, and lays a stable foundation for the core treatment process.

Core Combined Process: Activated Carbon Adsorption + Catalytic Combustion

The equipment adopts the industry-leading, high-efficiency combined treatment process of "activated carbon adsorption + catalytic combustion", which balances superior purification performance and energy saving.

Activated carbon adsorption unit: As the core of pre-treatment and deep purification, it uses the porous structure of activated carbon to physically adsorb volatile components in organic waste gas. It can effectively remove low-concentration organic waste gas and trace dust impurities, prevent dust from entering the catalytic combustion system, and extend the service life of the equipment. When activated carbon reaches adsorption saturation, the equipment automatically switches to desorption mode, desorbs the adsorbed organic waste gas and sends it to the catalytic combustion system for deep treatment. This realizes the recycling of activated carbon, reduces operating costs, and avoids secondary pollution caused by frequent activated carbon replacement.

Catalytic combustion unit: As the core of organic waste gas degradation, it completely oxidizes and decomposes organic waste gas into harmless carbon dioxide and water at a low temperature (200-400℃) through the action of high-efficiency catalysts. Compared with traditional incineration processes, catalytic combustion has the advantages of low energy consumption, no secondary pollution and ultra-high purification efficiency, with an organic waste gas removal rate of over 95%, thoroughly solving the treatment problem of high-concentration organic waste gas.

The synergistic effect of the two processes forms a closed-loop governance system of "adsorption-desorption-combustion-purification", which can efficiently handle both low-concentration and high-concentration organic waste gas, and ensure the purification effect fully meets industry standards.

Strict Compliance Assurance & Intelligent Monitoring System

With "standard-compliant emission" as the core goal, the equipment strictly complies with national and industry standards including Integrated Emission Standard of Air Pollutants and Emission Standard of Pollutants for Synthetic Resin Industry. Through the synergistic effect of multiple purification processes, it ensures all indicators of treated waste gas meet environmental protection requirements, with the emission concentration of NMHC, VOCs and other pollutants far lower than the national standard limits, truly realizing stable and compliant emission.

Meanwhile, the equipment is equipped with an intelligent monitoring system, which monitors the operating parameters of waste gas collection, adsorption, catalytic combustion and purification in real time, and feeds back the treatment effect dynamically. In case of excessive emission, the system will automatically alarm and adjust operating parameters, to ensure full-process stable and compliant operation.

High Adaptability & Low-Cost Operation Advantages

The Photovoltaic Organic Waste Gas Treatment Equipment has ultra-strong adaptability, and can be flexibly customized according to the scale of PV production lines. It can be accurately adapted to both low-concentration waste gas treatment of small PV workshops and high-concentration organic waste gas treatment of large-scale PV production bases.

User-friendly operation: It adopts a fully automatic control system, and operators can take up posts after simple training, greatly reducing labor input.

Flexible layout: The equipment has a compact footprint and can be flexibly arranged in the PV workshop without changing the original production layout, realizing on-site collection, on-site treatment and on-site compliant emission of organic waste gas.
