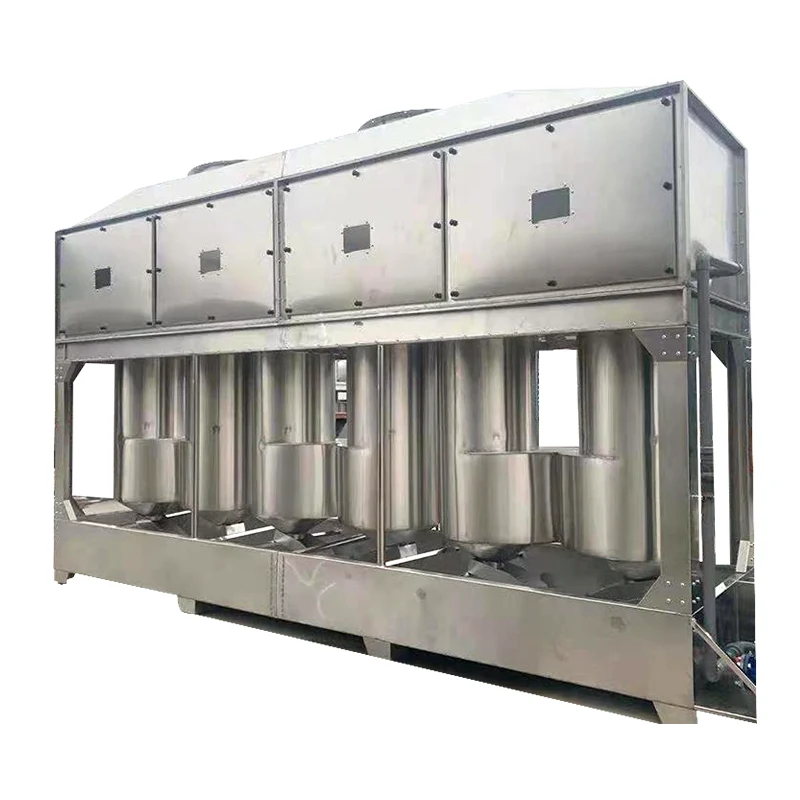

Cyclone Hybrid Spray Tower

The Cyclone Hybrid Spray Tower is a new-generation high-efficiency wet waste gas treatment device that integrates traditional spray washing technology with cyclone hybrid separation technology. It is primarily designed for comprehensive treatment of industrial acid-base waste gases, dust particles, oil fumes, and odorous emissions.

Unlike conventional spray towers that rely solely on single-stage water washing, this equipment achieves significantly improved purification efficiency through multiple processes: high-speed cyclone turbulence, multi-stage atomized spraying, sufficient gas-liquid contact, and cyclonic dehydration separation. It has become the mainstream core equipment for industrial waste gas pre-treatment, mid-stage deep purification, and environmentally compliant discharge. Adaptable to high-airflow, high-concentration, and complex mixed waste gas conditions, it is widely used in machinery processing, chemical manufacturing, painting, electronics, pharmaceuticals, printing and dyeing, and municipal deodorization applications, effectively solving industry pain points such as high dust concentrations, excessive acid-base gas emissions, heavy mist, and non-compliant purification.

Operating Principle

Featuring a vertical cylindrical corrosion-resistant cabinet structure, the Cyclone Hybrid Spray Tower offers excellent acid and alkali resistance, corrosion protection, and aging resistance. Its purification process follows three sequential stages:

1. Cyclone Pre-Separation: Waste gas enters the tower tangentially through the bottom inlet, forming a high-speed rotating turbulent airflow under the action of cyclone guide structures. Centrifugal force first completes inertial separation of large dust particles, droplets, and impurities.

2. Multi-Stage Spray Washing: The airflow then rises through multiple atomized spray zones. A high-pressure spray system atomizes circulating water into fine mist droplets that make full countercurrent contact with the waste gas, adsorbing, neutralizing, and degrading acid-base gases, VOCs, smoke, and odor molecules.

3. Cyclonic Dehydration and Demisting: Finally, the gas passes through a cyclonic dehydration and demisting module that intercepts water vapor and droplets. Dry, clean gas is discharged from the tower top in compliance with emission standards.

Core Advantages

As an upgraded iteration of traditional spray towers, the Cyclone Hybrid Spray Tower addresses critical industry pain points including low purification efficiency, frequent clogging, high air resistance, poor working condition adaptability, and severe mist entrainment. Its core competitive advantages over conventional washing equipment are:

1. Cyclone Hybrid Purification for Superior Treatment Efficiency

Traditional spray towers rely solely on water washing, resulting in short gas residence time and uneven gas-liquid mixing, with limited effectiveness for medium-to-high concentration waste gases. The Cyclone Hybrid Spray Tower features an innovative tangential air intake structure that creates high-speed rotational turbulence, enabling primary pre-treatment separation of large particles through centrifugal force.

The high-speed cyclone structure effectively extends gas residence time within the tower. Combined with a multi-layer high-density atomized spray system that fully atomizes circulating washing liquid into fine mist, it achieves comprehensive, dead-angle-free contact between waste gas and washing solution. This delivers over 95% purification efficiency for acid-base waste gases and stable 90%+ removal efficiency for particulate matter, easily handling complex mixed waste gas conditions and meeting strict environmental emission standards.

2. Packing-Free Open Structure Eliminates Clogging and Scaling

Conventional spray towers depend on packing layers to increase gas-liquid contact area. However, packing pores easily adsorb dust impurities and sticky contaminants, leading to dust accumulation, hardening, and scaling over time. This causes increased air resistance, reduced airflow, and purification failure, requiring frequent shutdowns for disassembly and cleaning that disrupt production and increase maintenance costs.

The Cyclone Hybrid Spray Tower abandons traditional packing design in favor of an open cyclone hybrid structure with no easily clogged pores. The turbulent airflow scouring and continuous water mist washing create a self-cleaning effect, with impurities quickly falling into the water tank without accumulation. This exceptional resistance to clogging, scaling, and sticky contamination allows long-term stable operation in harsh industrial conditions with high dust, humidity, and impurity levels, significantly reducing equipment failure and downtime.

3. Low Air Resistance and High Throughput for Energy-Efficient Continuous Operation

Traditional packed spray towers have high air resistance due to numerous internal obstruction structures, leading to airflow attenuation, high fan load, and increased power consumption. The Cyclone Hybrid Spray Tower features smooth, unobstructed internal air ducts with no redundant blocking structures, resulting in extremely low overall system resistance.

It maintains original pipeline air pressure and ventilation capacity without requiring fan boosting, effectively reducing equipment energy consumption. The system supports 7×24 hours of uninterrupted stable operation with consistent airflow and purification performance, perfectly adapting to continuous, high-volume industrial waste gas treatment requirements while balancing purification efficiency and energy savings.

4. High-Efficiency Cyclonic Dehydration Eliminates White Smoke and Equipment Corrosion

Conventional spray equipment often discharges waste gas entrained with large amounts of fine mist droplets, causing white smoke and water vapor emissions that affect the factory environment. This also leads to pipeline water accumulation, fan moisture corrosion, and secondary dust entrainment, shortening the service life of the entire waste gas system.

The Cyclone Hybrid Spray Tower is equipped with a dedicated cyclonic dehydration and demisting module at the top that precisely intercepts fine mist droplets and residual moisture, achieving complete gas-water separation. The discharged gas is dry and clean, eliminating white smoke and water vapor entrainment at the source. This effectively protects downstream pipelines, fans, and other supporting equipment, reducing corrosion damage and extending the service life of the entire purification system.

5. Corrosion-Resistant, Easy to Maintain with Excellent Cost Performance

Constructed with an integrated corrosion-resistant cabinet forming process, the equipment offers excellent acid and alkali resistance, corrosion protection, aging resistance, and high temperature tolerance, adapting to various corrosive waste gas treatment conditions. Its robust structure results in extremely low failure rates.

The simple and compact design facilitates easy disassembly and maintenance. The water circulation system can be reused, with minimal consumable loss and no need for frequent packing or filter element replacement, significantly saving material and labor maintenance costs. Compatible with both new industrial environmental protection projects and retrofitting of old spray equipment, it offers wide adaptability and quick implementation, providing long-term stable compliant operation with a single installation.

Primary Application Scenarios

· Machinery Processing: Treatment of grinding dust, cutting oil fumes, and welding smoke

· Chemical Manufacturing: Neutralization of acid-base waste gases and absorption of chemical odors

· Painting and Coating: Pre-treatment of paint mist and organic waste gases

· Electronics Industry: Removal of solder fumes and chemical cleaning vapors

· Pharmaceuticals: Treatment of fermentation odors and solvent emissions

· Printing and Dyeing: Removal of ink odors and dyeing auxiliary emissions

· Municipal Deodorization: Odor control in garbage stations, sewage treatment plants, and public toilets

Conclusion

The Cyclone Hybrid Spray Tower represents a significant advancement in wet waste gas treatment technology, effectively addressing the limitations of traditional spray towers. With its core advantages of cyclone hybrid purification, packing-free anti-clogging design, low energy consumption, efficient dehydration, and easy maintenance, it has become the preferred solution for industrial acid-base waste gas, dust smoke, and VOC odor comprehensive treatment.

As environmental regulations continue to strengthen, the Cyclone Hybrid Spray Tower provides enterprises with a reliable, cost-effective, and compliant waste gas treatment solution, supporting sustainable industrial development while ensuring environmental protection requirements are met.
